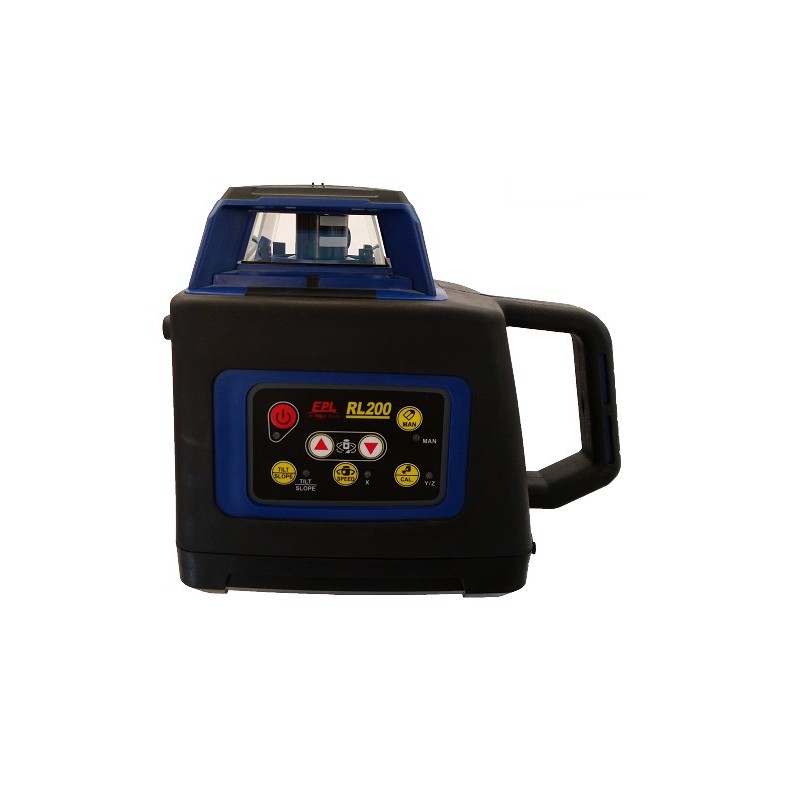

The EPL RL-200 is a self-leveling construction laser with great distance and high accuracy.
Features:
• Self-leveling on H/V directions with upward and downward plumb beam.
• With rotating, scan, spot function for option.
• Auto/Manual mode for switch,under the manual mode, it can make the single slope setting.
• Compact size and easy for operation. Special design with rubber covered housinng for shock proof.
• Tilt alert protection.
• Red laser/Green laser line are both available.
Specifications:
Horizontal accuracy:
±1mm/10m
Vertical accuracy:
±1.0mm/10m
Up beam accuracy:
±1.5mm/10m
Down beam accuracy:
±3mm/10m
Operation distance:
0.5m ~ 250m (radius)
Remote distance:
≥30m
Leveling range:
±5°
Scanning angle:
10°/30°/60°
Rotating speed:
300, 600, 0rpm(in horizontal direction) 0, 300, 600rpm(in vertical direction)
Laser source:
635nm, Class 2.
Working time:
≥24 hours
Power:
NI-MH rechargeable batteries
Working temperature range:
-10°C ~ +40°C
IP class:
IP54
Weight:
2.0kg
Standard outfit:
main unit, laser detector with clamp, remote，control, wall mount, target plate, laser glasses, rechargeable batteries and charger, instruction manual, plastic case.
