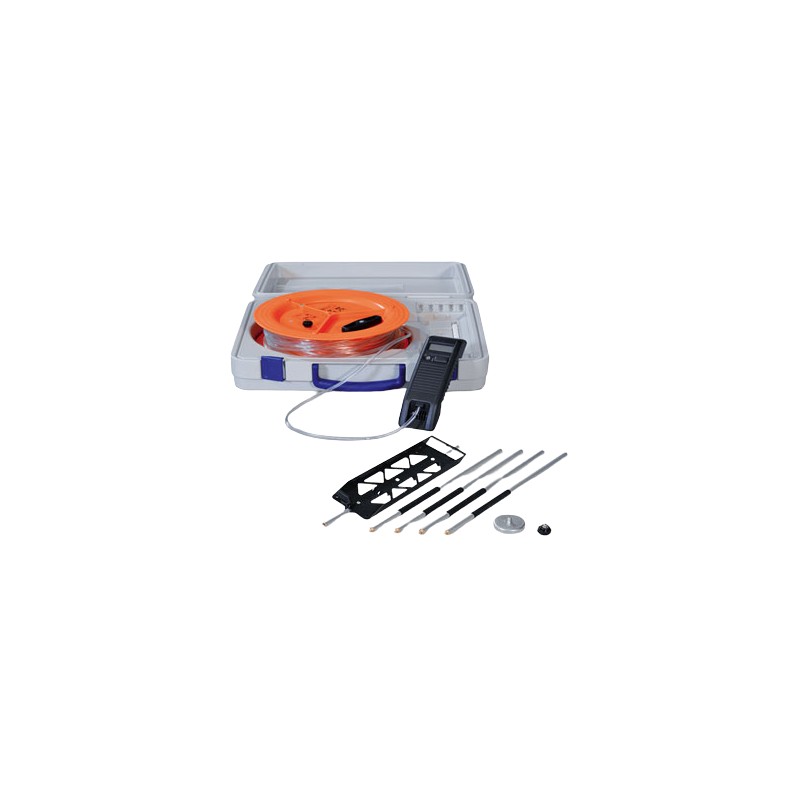

The handheld device contains the sensing technology for the acquisition of the altitude difference to the reservoir in the hose reel. The hose reel with pressing screw and indicator module contains the liquid reservoir – which forms the point of reference during levelling.
In order to transmit a level to another point, you line up the handheld device against this level and save it as zero-reference per keystroke. Every following change in altitude of the handheld device is indicated in millimetres (or inch) as well as with the direction (arrows or ±). This applies to every point within the radius of 24 meters to the hose reel. The patented recording of the liquid’s temperature makes optimal results possible, even in case of applications outdoors (complying with the respective directions).
The solid and double-walled PP-case with space for optional accessories guarantees an easy pulling out of the hose lengths needed.
SPECIFICATION
reproducibility (inside, typical) ± 2 mm at a maximum measuring point distance of 48 m
vertical outreach ± 2.5 m (± 4.0 m)
altitude indication mm / Inch
resolution 1 mm (sign character 0.3 mm)
temperature range of application about 0 … +35 °C
battery handheld device 1 x AA (alkaline) 1.5 V
energy requirement/operating time ~ 10 mW / > 250 h
dimensions 450 x 420 x 150 mm
weight about 5.5 kg
certificates CE, FCC, conforming with RoHS
low-emission in accordance with the EMC-product-standards
